Sound Insulation Anti Static Calcium Sulphate Floor for Telecommunication Room. Power Station, Computer Room, Factory Clean Room

Basic Info

After-sales Service	1 Year
Warranty	1 Year
Material	Metal
Size	500*500mm,600*600mm and Special Size
Function	Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Surface Treatment	Simple Color
Color	Customizable
Metal Type	Steel
Certification	CE, ISO
Usage	Electrical Factory, Computer Room, Bank, Offices
Advantage	Long Life of Usage
Customized	Customized
Finished Floor Height	100-2000mm
Density	1500-1700 Kg/M3
Panel Size	500*500mm,600*600mm and Special Size
Core Panel Thickness	22-38mm
Lnstallation	Without or with Stringer System
Transport Package	Pallet
Specification	500*500mm, 600*600mm
Trademark	Zili
Origin	China
HS Code	68091900
Production Capacity	100, 0000 Square Meters/Year

Product Description

Anti-static Calcium Sulphate Raised Floor

Product Description Information

Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. steel sheet is bonded to the bottom of core.HPL,PVC or anti-static ceramic tiles is bonded to the top of core.PVC edging strip is glued to each edge of the panel,avoiding common occurrences of floor bubbling,and unglued phenomena and etc.

Characteristics

Good loading capacity and conductivityGood sealing and water-proofFire-proof , antisepsis and sound insulationExceptionally high rolling load capacityImproved acoustic properties

Product Parameters

Finished Floor Height:	100-2000mm
Density:	1500-1700 kg/m3
Panel size:	500*500mm,600*600mm and special size
core Panel Thickness:	22-38mm
Upper Covering:	Bare,1.0-2.0mm Anti-static Laminate HPL,2.0-3.0mm PVC,10mm Cermic,Marble,Granite,Nature Wood,and etc.
Under Covering:	Bare,0.3-2.0mm Galvanized steel,0.1-2.0mmAluminum Foil
lnstallation:	Without or With stringer system

Type	size	Rolling load		Uniform load		Ultimate load		Concentrated load
		10PAss	10KPAAASs					2.5mm deflection|		2.0mm deflection
FS1000	600*600mm 30-40mm thick	3.56KN	2.67KN	5000LB/m2	22.22KN/m2	3260LB	14.50KN	1000LB	4.45KN	800LB	3.56KN
FS1250		4.45KN	3.56KN	6250LB/m2	27.78KNm2	4130LB	18.36KN	1250LB	5.56KN	1000LB	4.45KN
FS1500		5.56KN	4.45KN	7500LB/m2	33.34KN/m2	5000LB	22.17KN	1500LB	6.68KN	1250LB	5.56KN
FS2000		6.68KN	5.56KN	10000LB/m2	44.45KN/m2	6620LB	29.42KN	2000LB	8.89KN	1500LB	6.68KN
FS2500		8.89KN	6.68KN	13000LB/m2	57.79KN/m2	8400LB	37.34KN	2500LB	11.11KN	2000LB	8.89KN

Application

Anti-static calcium sulphate raised access floor is widely used in telecommunication room.power station,computer room,factory clean room and other anti-static requiring places.

Product display

Our Advantages

Company Profile

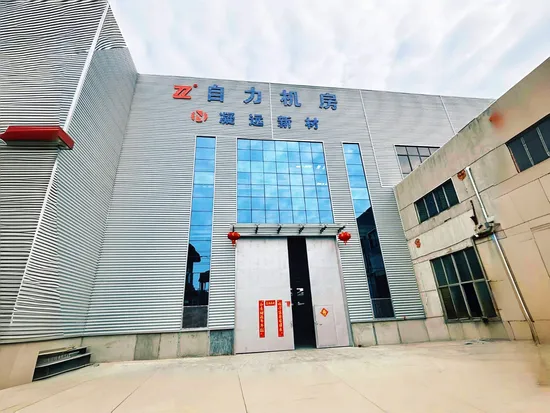

Jiangsu Zili Machine Room Equipment Was founded in 1994, covering an area of more than 30000 square meters. It is located in the Golden Triangle of the Yangtze River, adjacent to the 312 National Highway, the Shanghai Nanjing Railway, the Beijing Hangzhou Grand Canal in the south, and the Shanghai Nanjing Expressway in the north. The transportation is very convenient. It is an enterprise specializing in the development, development and installation of "Zili" brand series anti-static raised floor.The company has passed ISO9001 international quality system certification and product quality approval. The company adopts the business philosophy of choosing excellent materials, introducing sophisticated equipment, adopting exquisite workmanship, careful management, creating exquisite products, providing sincere services, and creating "self reliant" boutiques."Self support" has always adhered to the business philosophy of "quality, customer first, and dedicated service", with an annual production capacity of 200000 square meters of various anti-static access elevated floors, which are widely used in scientific research, education, communication, power, aerospace, finance and other units, achieving stable social and economic effects.The company has set up production, supply and marketing integrated service outlets in large and medium-sized cities across the country, and its reputation has been well received by new and old customers."Zili" brand anti-static series products are deeply trusted by new and old users. For after-sales service, customers can contact and consult the sales network office. The company has long-term cooperation with new and old users and provides customers with quality services.Create an independent brand and build an independent image.

Certifications

FAQ

What is your MOQ?
A: 100pieces each type Q2.What is the loading quantity in one 20GP?
A:1100-1500pieces,depending on the raised floor type. Q3.When is your delivery time?
A: 30days after receiving the prepayment. Q4.What is your package?
A:packed in wooden pallet,covered with plastic film. Q5.What is your payment term?
A:T/T,L/C,Paypal,Master card,Western Union.Q6. What is your response time?
A: Quick response within 24 hours.Q7. What is the annual output of you products?
A: 100,0000 Square MetersQ8. Can you make customized products?
A: Of course yes.Q9.What is your business type?
A: Manufacturer factory&trading company.
